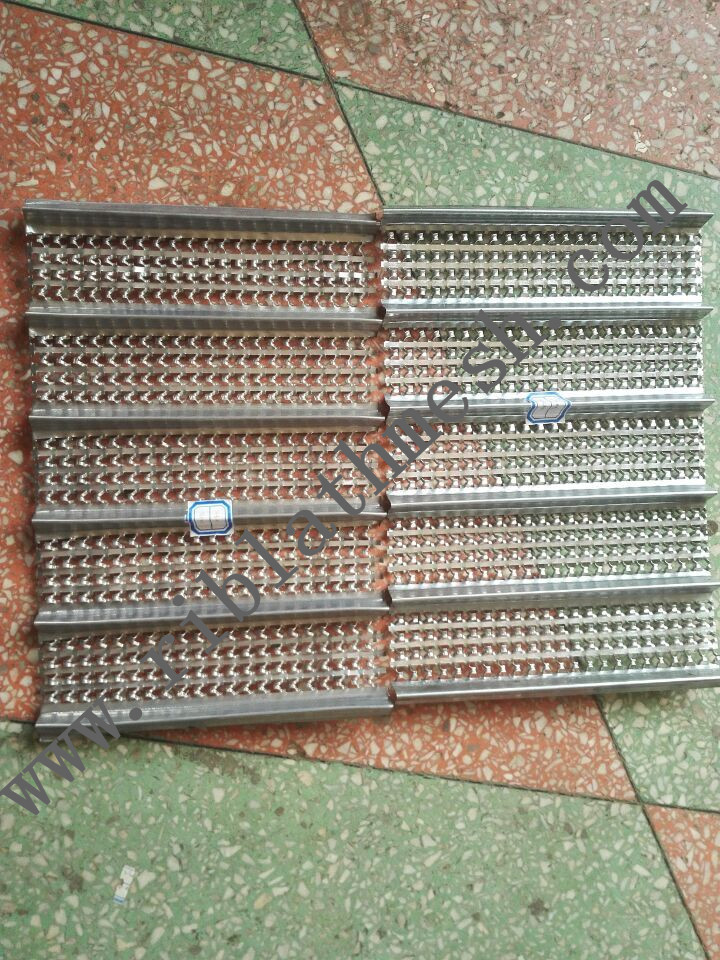

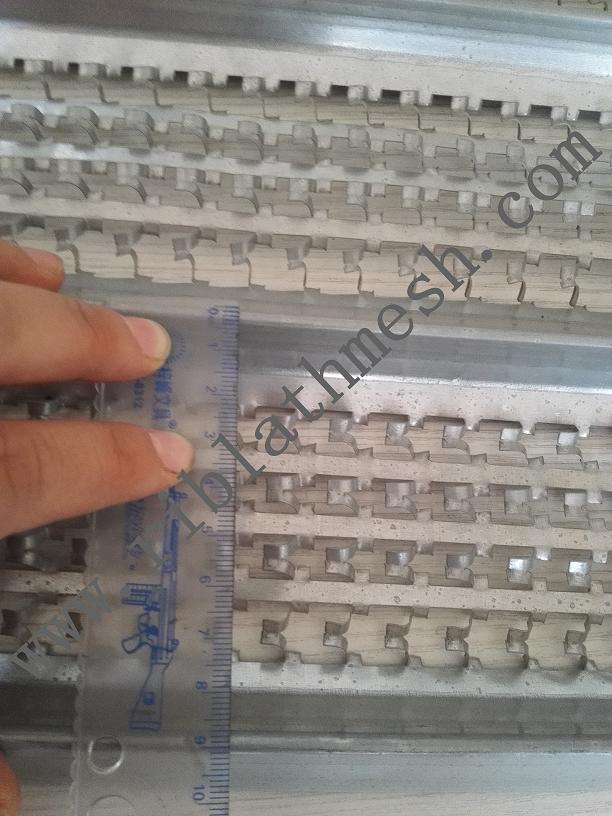

20mm Rib Height HY Rib Mesh ,0.18-0.57mm Thickness HY Rib Mesh

Name: 20mm Rib Height HY Rib Mesh 018057mm Thickness HY Rib Mesh
Brand: Xingtai
Price: 1 USD

Buy cheap 20mm Rib Height HY Rib Mesh ,0.18-0.57mm Thickness HY Rib Mesh product

Brand Name : Xingtai

Model Number : XTHR01

Place of Origin : ANPING HEBEI CHINA

MOQ : 1000

Supply Ability : 5000pcs/day

Delivery Time : 15-20days

Packaging Details : 500 or 1000pcs/pallet

Name : HY Rib Mesh

WIDTH : 0.45M

LENGTH : 2-3M

Rib Height : 14-20mm

Thickness : 0.18-0.57mm

MATERIAL : Galvanized Plate

Contact Now

20mm Rib Height HY Rib Mesh ,0.18-0.57mm Thickness HY Rib Mesh

Raw Material:

Hot-dipped galvanized steel sheets

Specification:

The follows is the 20mm Height specification for you reference:

Model	Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance(mm)
2021	0.21	1.70	450	2200	20	90
2023	0.23	1.90	450	2200	20	90
2025	0.25	2.10	450	2200	20	90
2030	0.30	2.50	450	2200	20	90
2035	0.35	2.90	450	2200	20	90
2040	0.40	3.40	450	2200	20	90
2045	0.45	3.80	450	2200	20	90
2050	0.50	4.10	450	2200	20	90
2057	0.57	4.70	450	2200	20	90

20mm Rib Height HY Rib Mesh ,0.18-0.57mm Thickness HY Rib Mesh

Feature:

HY Rib Mesh has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. As concrete permanent assembly-free form work.

20mm Rib Height HY Rib Mesh ,0.18-0.57mm Thickness HY Rib Mesh

15MM RIB HEIGHT

20mm Rib Height HY Rib Mesh ,0.18-0.57mm Thickness HY Rib Mesh

20MM RIB HEIGHT

How to Install High Ribbed Formwork

20mm Rib Height HY Rib Mesh ,0.18-0.57mm Thickness HY Rib Mesh

Product Tags:

hy rib lath

hy rib sheet

20mm Rib Height HY Rib Mesh ,0.18-0.57mm Thickness HY Rib Mesh Images
