0.4mm Thickness Round Hole Perforated Metal Mesh 2m Length 1m Width

  • 1
  • 2

Brand Name : Xingtai

Model Number : XTPD01

Place of Origin : Anping Hebei China

MOQ : 100

Supply Ability : 1000/day

Packaging Details : pallet

Material : Stainless steel , iron , galvanized metal and aluminium

Width : 1m-1.22m

Length : 2-2.44

Thickness : 0.4-8mm

Hole pattern : Round

Color : White,Red ,Green,Blue and so on

Contact Now

0.4mm Thickness Round Hole Perforated Metal Mesh 2m Length 1m Width



 Round Hole Perforated Metal Mesh are the most common and most requested.There are several types of hole diameters:very small,medium,large size.Hole pattern is of primary importance:the most popular arrangement is the 60 degree angle pattern,which combines a high rigidity and a decent proportion between open and full areas.The 90 degree pattern is equally popular,abouve all for aesthetic needs whereas the 45 degree pattern is now almost disused.



Opening

(mm)

Center type

(mm)

Thickness of sheet(mm)

Min-max

Size(mm)

Common size
1 2 0.4-1 1220x2400/1000x2000
1.5 2.5 0.4-1 1220x2400/1000x2000
2 3 0.4-2 1220x2400/1000x2000
2.5 3.5 0.4-2.5 1220x2400/1000x2000
3 4 0.4-3 1220x2400/1000x2000
4 5.5 0.4-4 1220x2400/1000x2000
5 6.5 0.4-5 1220x2400/1000x2000
6 8 0.4-5 1220x2400/1000x2000
7 9 0.4-6 1220x2400/1000x2000
8 10 0.5-7.5 1220x2400/1000x2000
9 11 0.5-8 1220x2400/1000x2000
10 12 0.6-8 1220x2400/1000x2000
12-20 15-24 0.8-6 1220x2400/1000x2000
21-30 25-36 1.0-6 1220x2400/1000x2000



0.4mm Thickness Round Hole Perforated Metal Mesh 2m Length 1m Width


Product Tags:

decorative perforated sheet metal panels



perforated steel plate


Buy cheap 0.4mm Thickness Round Hole Perforated Metal Mesh 2m Length 1m Width product

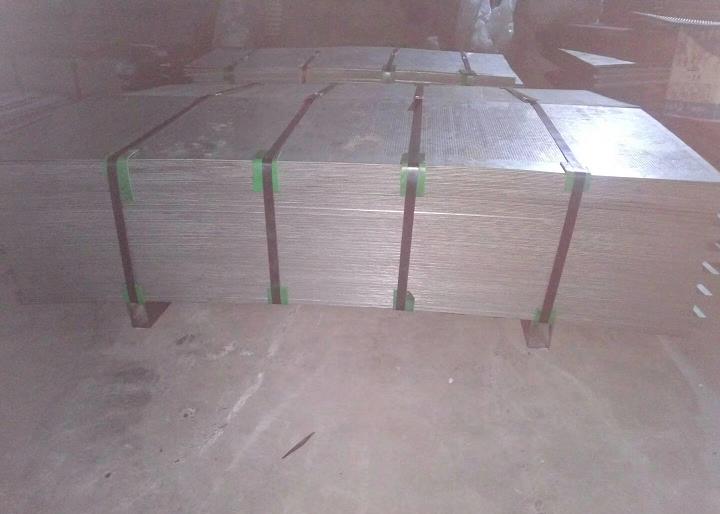

0.4mm Thickness Round Hole Perforated Metal Mesh 2m Length 1m Width Images
